Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil

Voltage : 220 V, 110 V

Measurement accuracy : 0.5%

Weight : 12kg

Application : Oil Testing, oil BDV tester

Accuracy Class : High Accuracy

Supply Ability : 1000pcs/month

Volume : 380*350*260 mm

Place of origin : Hebei, China

Applicable temperature : 0℃~45℃

MOQ : 1

Time Resolution : 1s

Working power supply : AC220V ± 10%, 50Hz ± 1Hz

Current Resolutio : 1μΩ

Resolution : 1μΩ

Voltage distortion rate : <3%

Standing time : 15min (adjustable)

Measuring accuracy : ±3%

Measurement range : 1-1999μΩ

Output voltage : 0~80KV (optional)

Operating Temperature : -10℃~40℃

Display mode : three-and-a-half-digit LCD

Protection Class : IP65

Booster capacity : 1.5KVA

Type : Testing Machine

Power : electric

Delivery Time : 1 week

Packaging Details : carton

Measuring Range : 1-1999μΩ

Brand Name : MINGYANG

Place of Origin : Hubei, China

Warranty : 2 Years

Model Number : MYJYD III

Customized support : OEM

Supply voltage : AC220V±10% 50Hz±1 Hz

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Price : 1200usd

Product type : oil bdv tester

Contact Now

Transformer Oil Breakdown Voltage Tester

The Automatic Oil Dielectric Strength Tester is designed for safe testing of large power transformers and other high-voltage electrical equipment including oil circuit breakers, oil-filled cables, power capacitors, and oil sleeves.

During operation, transformer oil performance gradually deteriorates due to exposure to oxygen, high temperature, humidity, sunlight, strong electric fields, and impurities, compromising its insulation capabilities. This tester accurately identifies performance degradation, as insulation oil quality is directly related to breakdown voltage.

Technical Performance Specifications
Parameter Specification
Power Voltage AC220V ± 10%, 50Hz ± 5%
Equipment Capacity 0.5kVA, Volume Capacity 1.5 kVA
Limited Current 5mA
Input Voltage 200V/50Hz
Output Test Voltage 0-80kV
Measurement Range AC 0-80kV
Voltage Indicator Error ± 5%
Breathing Speed 2kV/second ± 20%
Compression Speed 2kV/s ± 10%
State Settings Number of times 1-9
Static Time 0-10 minutes 39 seconds
Stirring Time 0-1 minutes 39 seconds
Burning Time ≤ 20ms
Measurement Accuracy 1%
Use Conditions Ambient temperature 10℃ - 35℃
Relative Humidity ≤ 75%
Oil Cup Gap 2.5mm (diameter of oil cup plug ruler)
Breathing Speed Options 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s (four-gear option)
Packaging Size & Weight 48*45*38cm, 25kg
Product Images

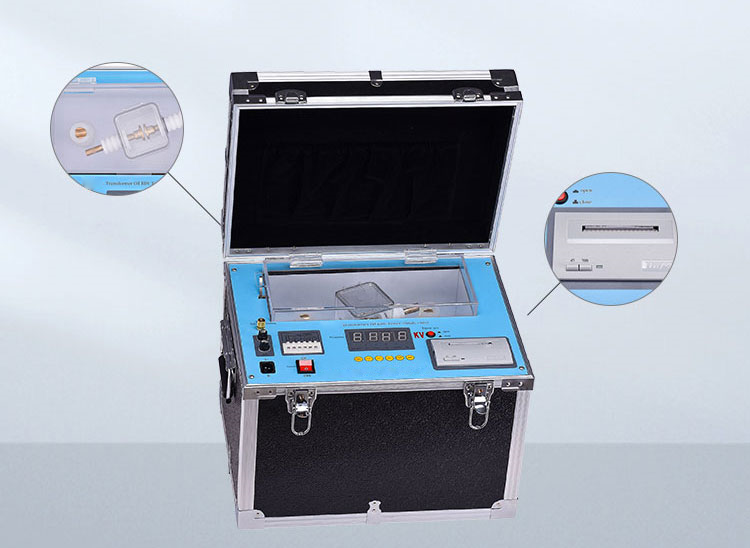

Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
